Running a Script with One Click

Although we covered a lot of customizing ground in my (award-winning!) lab at AU, there was one method I didn't cover, but will definitely have next year: the Script. Several years ago in January 2008, my friend, Lee Ambrosius, stepped in and showed you what scripts can do. Scripts are like a poor man's Lisp, and for a one-liner like me, they're just as effective and much easier to understand.

When to Use What

So what really is "best"? Should you make your own Tab on the Ribbon, put things on the Tool Palette, populate the Quick Access Toolbar, create an Alias? It all depends on how you like to work—and for many of us, it's a combination—but here's my take on those particular customizable components.

Quick Access Toolbar

Officially my favorite customization location. You can add single commands, macros, make your own button, run a Script (see below), and it's always visible. I'm a typer, but I love my buttons on the Quick Access Toolbar.

Alias

To run a single command by typing, use an alias. For example, I set my system up to use ‘C’ for Copy. No options can be configured when defining an alias; it's just what you want to type to run a singular command.

Tool Palette

Although the QAT is now my favorite, the most powerful customization tool is the Tool Palette, mainly because I can specify the properties—Color, Layer, Style—for the command I'm running, even if that component doesn't exist in the current drawing. Best used when working with drawings from others where you need to be consistent in your standards such as Text style, Dimension style, and Layout tabs.

One-Line Lisp

You can string a command and options into a single one-line Lisp. Once created and added to the Startup Suite (or acaddoc.lsp), it will always be available.

Tab on the Ribbon

Probably the coolest customization for those wanting to click, rather than type, anything you can put on the Quick Access Toolbar, you can put on the Ribbon.

The Script [.SCR]

When you run the .SCR, every line in that file is implemented. For example, you may have a script file that sets up several conditions for the current drawing; the Units, the current Layer, and then Zoom Extents. With a script, it's all or nothing.

By comparison, a .LSP file can contain a single one-line routine that does all those things, but it can also include three separate routines that you can launch one at a time with a simple keystroke.

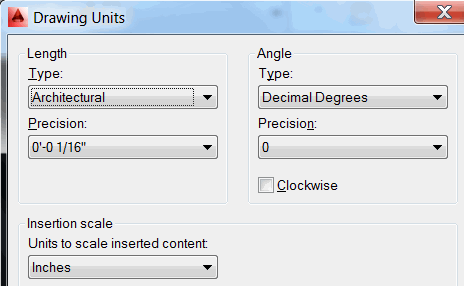

In the following exercise, you write a script that launches the command line version of the Units command and sets the values to the ones shown in this figure.

If you would like to configure the values to something other than what is shown here, type -UNITS at the command line and follow the prompts, then use those numbers to replace the ones here.

Also, you may replace the layer being created in the following script—A-FURN—to one that you would like to have in each drawing you work on.

How to Write a Script

1. Launch Windows Notepad.

2. Add the lines in red (below) with this understanding:

   * The underscore preceding each line means use the English language version.
   * The hyphen means use the command line version of the command (scripts can't respond to a dialog box).
   * The <SP> means a space goes here; when you hit the spacebar, it's the same as pressing [Enter]

   _-UNITS<SP>4<SP>16<SP>1<SP>0<SP>N<SP> (so this line reads _-UNITS 4 16 1 0 N )
   _-LAYER<SP>MAKE<SP>A-FURN<SP><SP><SP> (yes, three spaces)
   _ZOOM<SP>EXTENTS<SP> …but don't press [Enter] after typing the last space

3. When you save this file, it must have the extension of .SCR. I named mine, MC_FEB14.SCR, and I would recommend you save it to AutoCAD's ..\Support folder [C:\Program Files\Autodesk\AutoCAD 201x\Support].

Next, we need to put it on the Quick Access Toolbar, so we'll Duplicate the existing ‘Run a Script’ button and edit it to select our Script.

How to Add a Script to the Quick Access Toolbar

1. Open the CUI.

2. Expand the Quick Access Toolbars, then Quick Access Toolbar 1.

3. Under the Command list, navigate to Run Script.

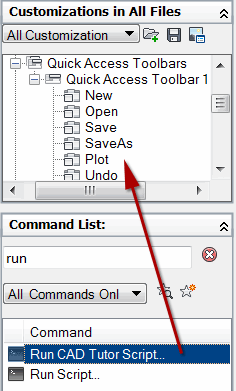

4. Right-click on Run Script, then click Duplicate. This is essentially a Copy/Paste routine which retains the integrity of the original command. We will edit the one that has an Element ID with the prefix of ‘MMU’ (before you ask, I have no idea).

5. Here's what I put in the Properties fields:

   Name	Run CAD Tutor Script
   Command Display Name	Drawing Setup
   Macro	'_script;MC_FEB14

6. Drag your new command up and release it in the list of commands under Quick Access Toolbar 1.

7. Click OK to save your edits and close the CUI.

8. To test your script, begin a new drawing, then set Layer 0 to current and draw a small rectangle.

9. Click your new Script button. When it's finished, the drawing should have done a Zoom Extents and the layer you put in the 2nd line of the script should be current!

So the next time you open a drawing where the units are not in keeping with what you prefer, or your favorite layer isn't in that drawing, hit your Script button and carry on!

Top of page

Power Tool

ACADDOC.LSP

First, I do not write full routines in Lisp. Ben & Lee are my go-to guys if I have any worthwhile ideas. I can, however, write one-liners which have randomly appeared on these pages over the last 10 years. For future reference—or to see what other commands you can add to the following exercise—take a look at Michael's Corner for February 2012.

It has been many years since I encountered the benefit of ACADDOC.LSP, and I was reminded of it when I was preparing this article and came across the following information in acad2014.lsp:

Note: This file is normally loaded only once per AutoCAD session. If you wish to have LISP code loaded into every document, you should add your code to acaddoc.lsp.

Let's say that occasionally you would like to turn off the Selection Preview feature—such as when you're working on complex 3D drawings in a Visual Style other than 2D Wireframe—and there are also times when you would like to split your Model Space into 2 views. Both of these requests would require more than a single click to accomplish… unless you add them to a .LSP file.

How to Add Routines to ACADDOC.LSP

1. Launch Windows Notepad.

2. Enter the following lines. For reference, take a look at my very first article on Lisp back in February 2003. (And yes, it does appear that I have a tendency to write about .LSP file in February!)

   ;Michael's Corner, Feb/Mar 2014 ; ;This routine sets the Selection Preview feature to Off (the Default is On) (DEFUN C:P0()(COMMAND "SELECTIONPREVIEW" "0")(PRINC)) ; ;Split Model space into 2 vertical halves (DEFUN C:S2()(COMMAND "-VPORTS" "2" "VERTICAL")(PRINC)) ; ;Set Model space to a Single viewport (DEFUN C:S1()(COMMAND "-VPORTS" "SI")(PRINC))

   In these routines, if you type what follows the C:, you will run the command and options that follow. Type P0 and it turns off the Selectionpreview condition. Type S2 to split Model space into 2 vertical section, then type S1 to put it back to a single view.

3. To make this work, you must name the file ACADDOC.LSP, and save it to AutoCAD's ..\Support folder [C:\Program Files\Autodesk\AutoCAD 201x\Support].

4. Since this is the first ACADDOC.LSP file that you have created, you will need to close AutoCAD, then relaunch.

5. To test it, draw a rectangle and confirm that the variable SELECTIONPREVIEW is set to something other than 0. Now enter S2 to split your screen. Enter P0 to turn off the preview feature, then hover over the rectangle and it doesn't highlight. Now type S0 to put your screen back to a single view.

Top of page

The Odd Spot

Layer Column Positioning

If you would like to reorient the column position in the Layer Properties Manager window, you could do one of two things.

First, you could simply pick and drag the columns to where you want them, or…

…you could right-click on one of the headers, then click Customize to open the Customize Layer Columns dialog box.

Top of page

The Basics

Layer Previous

Layers are the lifeblood in AutoCAD, and efficient management thereof is the key to your own quality of life; specifically, your sanity.

The Layer Previous button can be a real time saver and is, at its core, a Layer-specific ‘Undo’.

How to Use Layer Previous

1. Open a drawing, then make a new layer [MC_FEB2014], give it a color and make it current; this will be our testing layer.

2. Change the Color of any other layer in the current drawing, but don't make that layer current.

3. On our test layer, draw a small rectangle somewhere.

4. Click Layer Previous and the rectangle remains, but the color of the layer you changed is restored.

5. Freeze several existing layers, then Rotate the rectangle.

6. Click Layer Previous and the previously frozen layers are thawed… but the rectangle is still rotated!
