From: AutoCAD Productivity Articles #146
Originally published: June 2016
UCSICON Options
Every five years or so I address the UCS icon, so here's your next installment.
General Insights
There is a UCSICON command with these options:

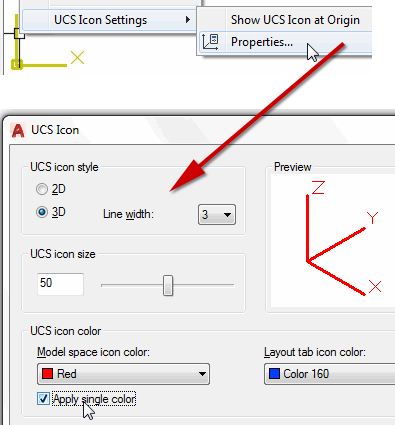

Right-click on the UCS icon to display a shortcut menu with a Properties option where you can dress it up a bit.
When you are in the 2D Wireframe visual style, the UCS icon looks like a stick figure. In any other visual style, the icon is a bit more colorful and 3D looking.Horses can only breath through their nose. [Just checking to see if you're paying attention.]
Click on the UCS icon and you see a square grip at 0,0,0 and round grips at the ends of the axes.To disable the ability to select/click on the UCS icon, set the variable UCSSELECTMODE to <0>.
Note: There's an article on how to dimension 3D objects in Michael's Corner, January 2013. You will find more information on manipulating the UCS icon in that review, too.
